Réf. 55764
Stock : 0

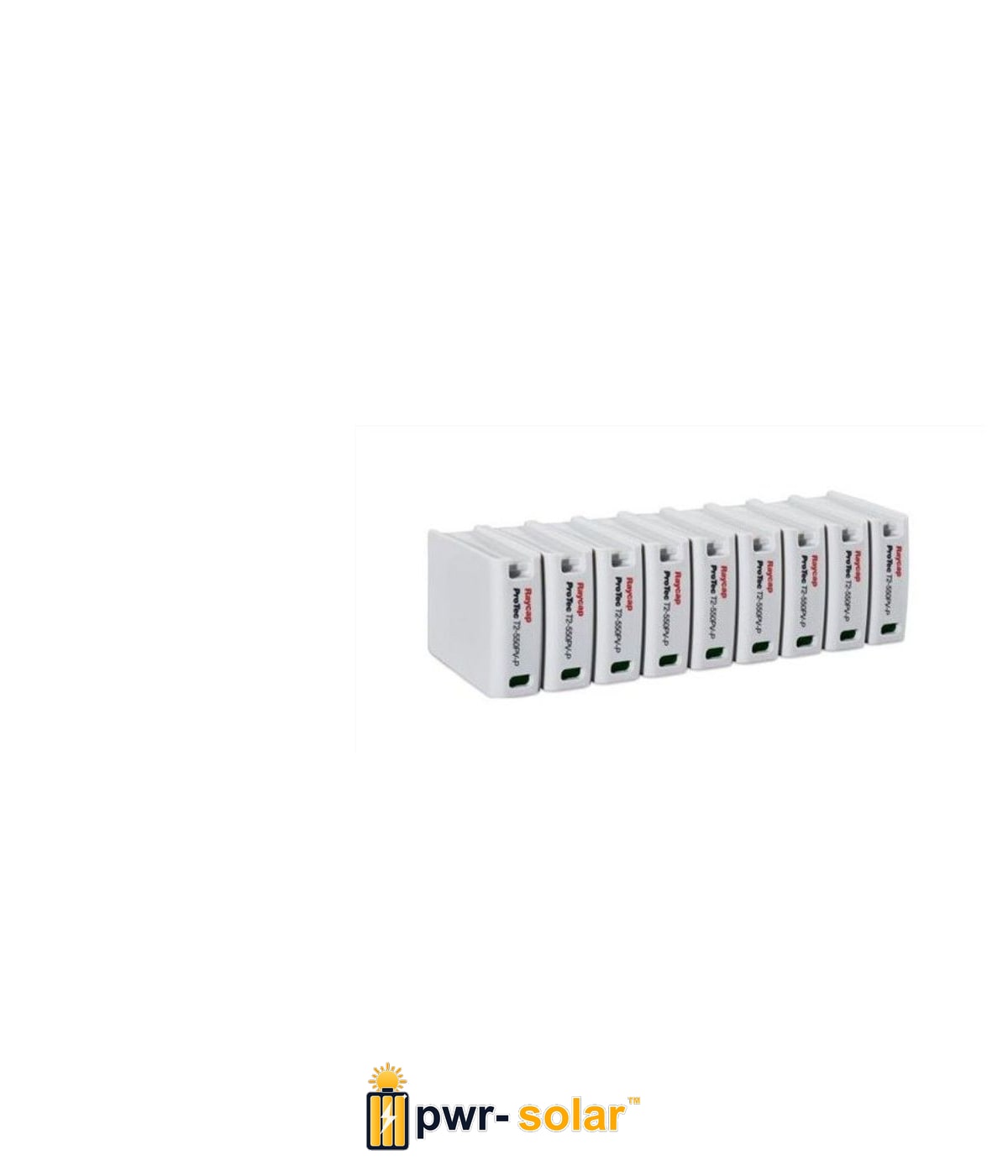

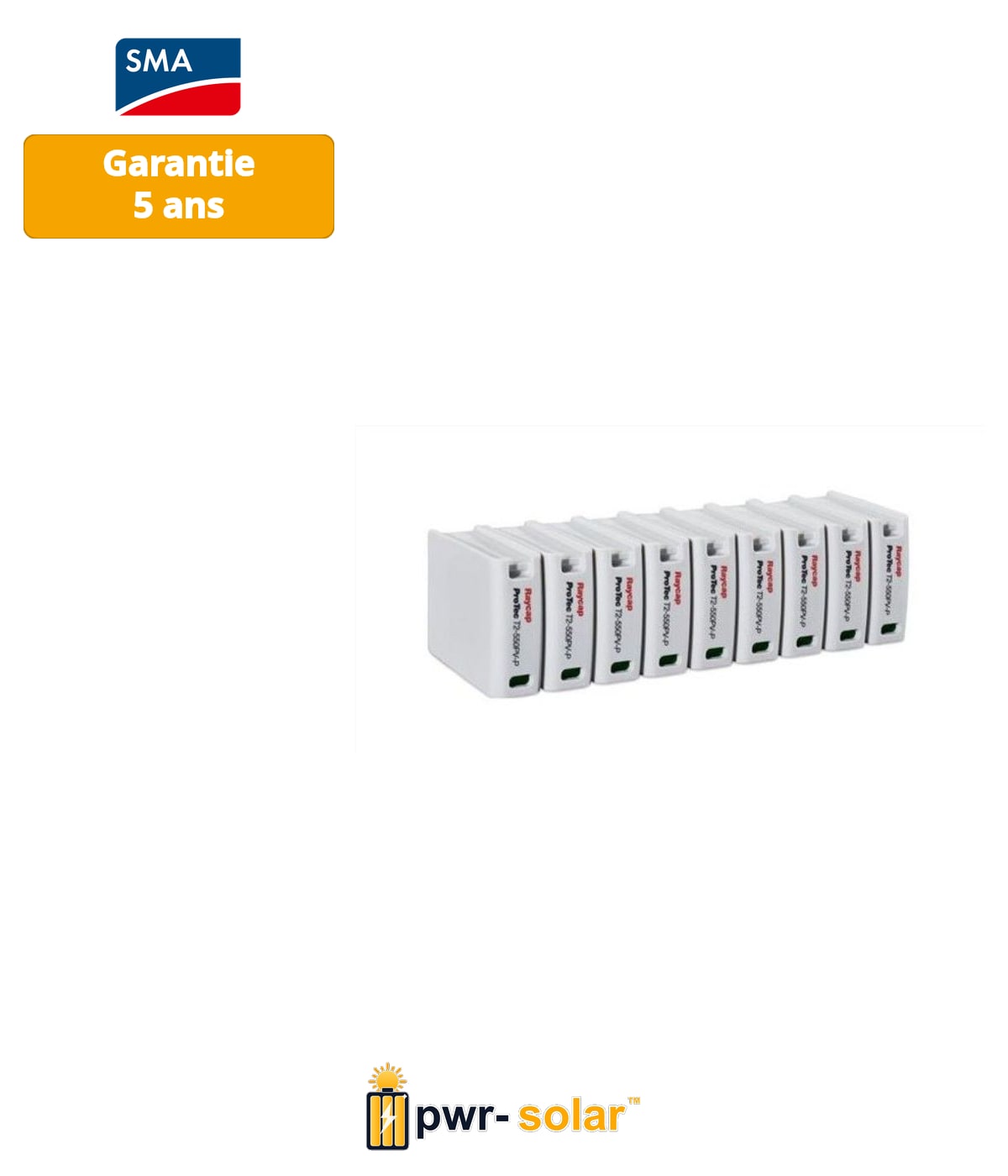

SMA – Parafoudre – DC_SPD_KIT4-10
146.40 € TTC
122.00 € HT
SMA kit parafoudre DC de type II pour STP Core1 1 kit (9 pcs) par onduleur compatibilité : STP Core1 (50-40 / STP 50-US-40 / STP 50 JP-40) ProTec-T2-1100PV-9Y-S01/R, parafoudres de type II
Informations techniques
| Voltage Protection Level Up 4400 V | Response Time tA < 25 ns |
|---|---|
| Voltage Protection Rating VPR 2500 V | Nominal Discharge Current (8/20 µs) In 20 kA |
| Operating Temperature Range Ta -40 ºF to +185 ºF [-40 ºC to +85 ºC] | Permissible Operating Humidity RH 5%...95% |
| Degree Of Protection IP 20 | Housing Material Thermoplastic: Extinguishing Degree UL 94 V-0 |
| Housing Material Thermoplastic | Extinguishing Degree UL 94 V-0 |
| Thermal Protection Ye s | Operating State / Fault Indication Green Flag / Not Green Flag |
| Mode of Protection |
